Description

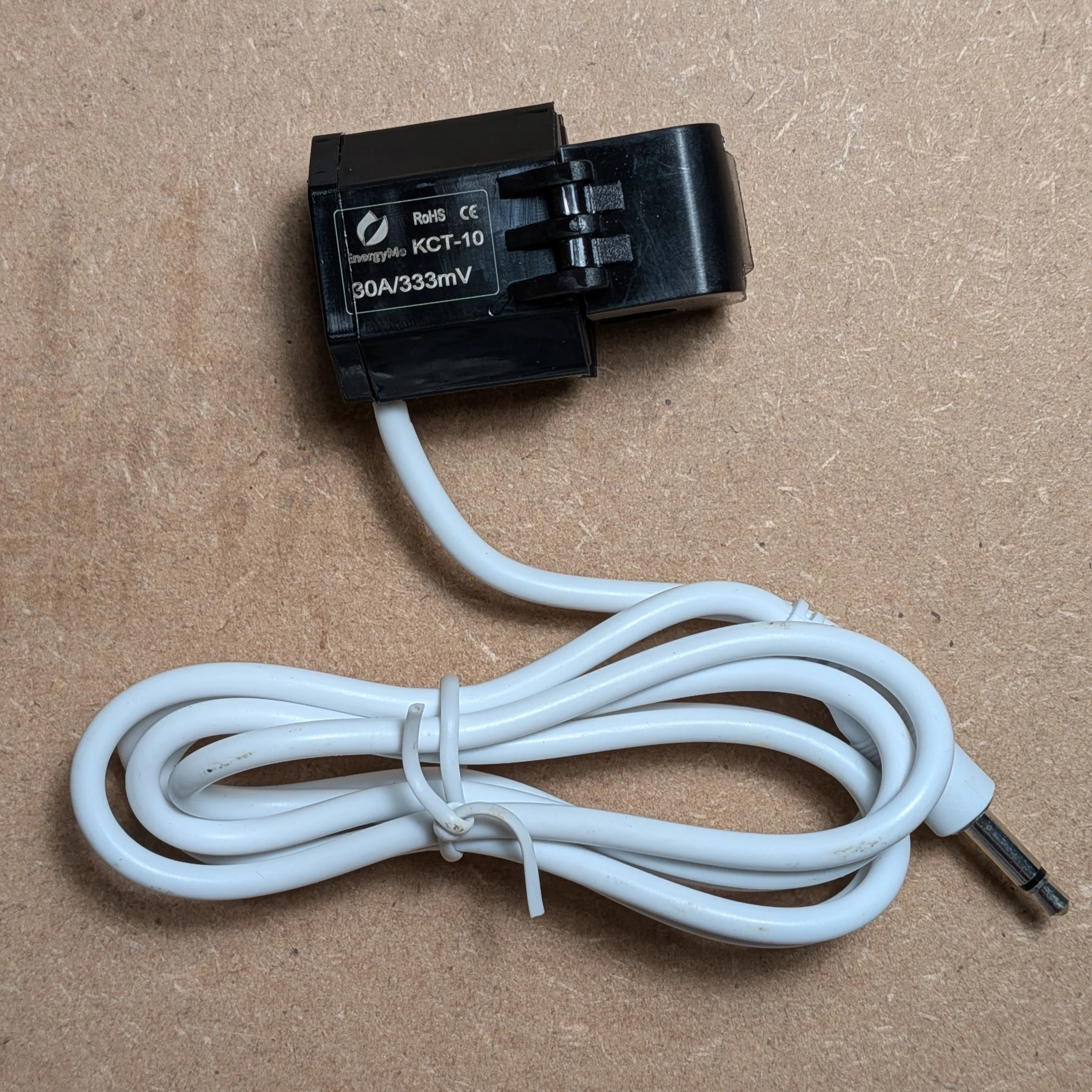

Plug-and-play current transformer, ready to use with EnergyMe-Home. Clip it around the wire, plug the 3.5mm jack in, and you're done. The split-core design means the wire stays exactly where it is.
Rated for up to 30A, it works with the vast majority of residential circuits and MCBs (up to 32A, which is 7kW single-phase or 22kW three-phase).
Key features
Split-core design: installs in seconds without touching existing wiring
3.5mm audio jack: direct plug-and-play with EnergyMe Home
333mV output, CATIII insulation
Orientation auto-detected by the software, so clipping direction doesn't matter
Operating conditions: -20°C to +50°C, ≤85% RH
1m white cable for clean routing inside your panel
Dimensions: 23.8 × 40.6 × 26.8mm | Inner window: 9mm
Sold individually
Description
Plug-and-play current transformer, ready to use with EnergyMe-Home. Clip it around the wire, plug the 3.5mm jack in, and you're done. The split-core design means the wire stays exactly where it is.
Rated for up to 30A, it works with the vast majority of residential circuits and MCBs (up to 32A, which is 7kW single-phase or 22kW three-phase).
Key features
Split-core design: installs in seconds without touching existing wiring
3.5mm audio jack: direct plug-and-play with EnergyMe Home
333mV output, CATIII insulation
Orientation auto-detected by the software, so clipping direction doesn't matter
Operating conditions: -20°C to +50°C, ≤85% RH
1m white cable for clean routing inside your panel
Dimensions: 23.8 × 40.6 × 26.8mm | Inner window: 9mm
Sold individually
